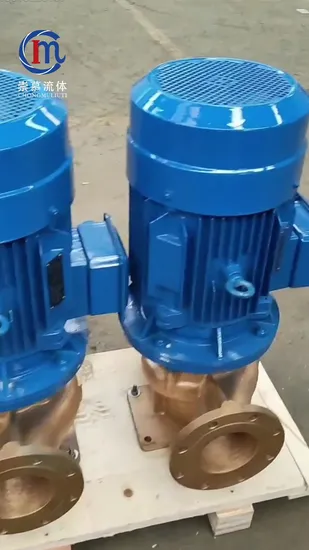

50Hz/60Hz Vertical Inline Pump Circulation Centrifugal Pump

Basic Info

Model NO.	ISG
Working Pressure	High Pressure Pump
Influent Type of Impeller	Single Suction Pump
Position of Pump Shaft	Vertical Pump
Pump Casing Combined	Verticaljoint Surface Pump
Mounting Height	Since Irrigation Centrifugal Pumps
Impeller	Closed
Usage	Pump, Pumps, Pipeline Pump
Color	Blue, Yellow, Green, Red, etc
Voltage	220V/380V/410V/460V/High Voltage
Frequency	50Hz/60Hz
Transport Package	Export Standard Wooden Box
Specification	Cast iron, SS304, SS316, SS201, etc
Origin	China
HS Code	8413709990
Production Capacity	8000 Sets/Year

Product Description

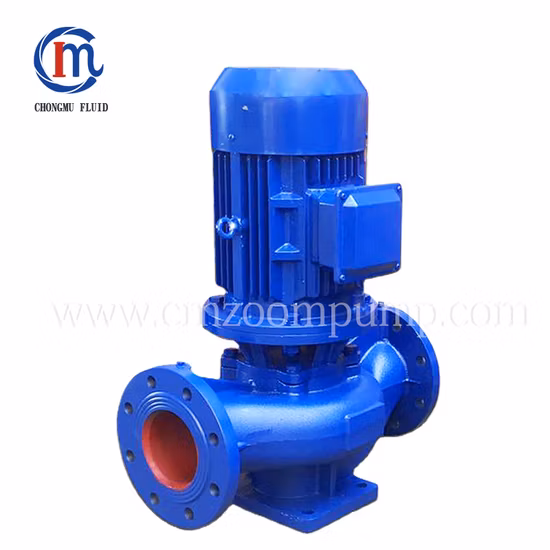

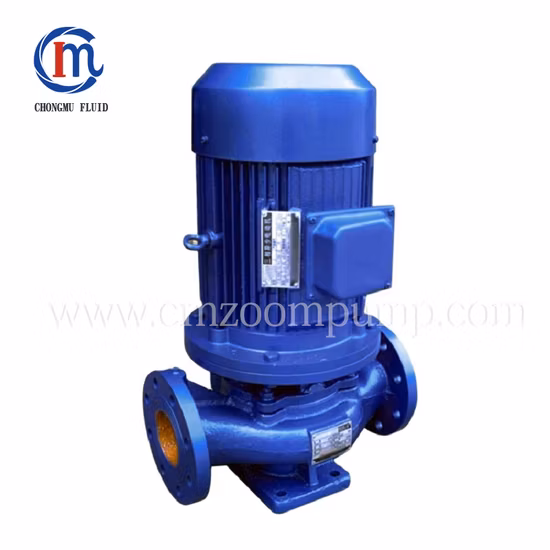

50Hz/60Hz Vertical Inline Pump Circulation Centrifugal Pump

The ISG vertical inline centrifugal pump is an excellent hydraulic model selected by our company's scientific and technical personnel and internal water pump experts. It adopts the performance parameters of the IS type centrifugal pump and is designed by ingenious combination on the basis of general vertical pumps.

At the same time, suitable hot water, high temperature, corrosive chemical pumps and oil pumps are derived from the ISG type according to the use temperature and medium.

Performance Parameters:

Flow range:	1.1-2000m3/h
Head range:	5-153.6m
Power:	0.18-160kw
Material:	Cast iron,SS304,SS316,SS201,etc

Features:

· The pump is a vertical structure, the inlet and outlet have the same caliber and are located on the same centerline,it can be installed in the pipeline like a valve.

·The impeller is directly installed on the extended shaft of the motor, with short axial size, compact and beautiful structure, small floor area and low construction investment. With a protective cover, it can be used outdoors.

·The pump and motor bearings are reasonably configured, which can effectively balance the radial and axial loads generated by the pump operation, so as to ensure the stable operation of the pump, low vibration and low noise.

· The shaft seal adopts a mechanical seal or a combination of mechanical seals, and uses imported titanium alloy seal rings, medium-sized high-temperature resistant mechanical seals and cemented carbide materials, and wear-resistant seals, which can effectively extend the service life.

· Convenient installation and maintenance, no need to dismantle the pipe road system, all the rotor parts can be drawn out by removing the nut of the pump joint base.

· The vertical and horizontal installation of the pump can be adopted according to the requirements of the pipeline layout, and the series and parallel operation of the pump can be adopted according to the requirements of the use, that is, the flow and head.

Structure:
Application:Company:

Shijiazhuang Chongmu Fluid Machine is a modern pump company specializing in production, research and development, sales and service. We have been in the centrifugal pump industry for more than 20 years. We have a modern standard pump room and a processing workshop with a variety of advanced processing equipment. The whole process from casting to assembly is one-stop closed-loop production. The team of experienced production R&D engineers is professional and efficient. Choose us, professional team, professional equipment, trustworthy.

Chongmu Main products:

1.Slurry pumps
2.Gravel pumps
3.ZJQ submersible slurry pumps
4.Inline pumps
5.Multi-stage pumps
6.Split case pumps
7.Sewage pumps
8.Mixed flow pumps
9.Self priming pumps
10.Spare parts

Our Workshop:

FAQ:

1.What information do you need to offer a quotation?
Liquid:
Pump Capacity: m³/h or L/S
Pump Head: M
pH:
Specific of gravity:
Voltage: V
Frequency: Hz

2.Are you the manufacturer or trading company?
We are real manufacturer for centrifugal pumps,and we have been in this industry for more than 20 years.

3.Can we pay a visit to your factory?
Yes.We warmly welcome you to visit our factory.

4.What is the MOQ?
There is no MOQ.
1 set of pump,or 1 piece of spare part is ok.

5.Do you accept OEM orders?
Yes.Send us the drawings,then we can produce for you.
